EASY

For easy adjustment

Control components for VAV terminal units for easy operation directly on the terminal unit

Controller, dynamic differential pressure transducer and actuator in one casing
Use in ventilation and air conditioning systems, only with clean air
Simplified ordering and on site assignment to rooms as selection is based on the nominal size of the duct

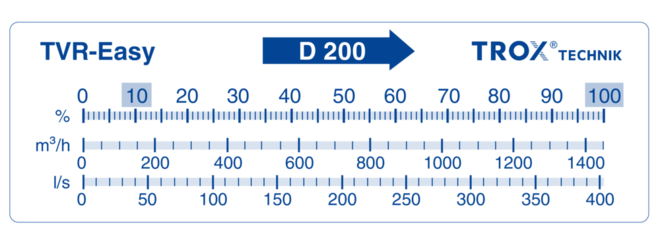

Simple volume flow rate setting without additional adjustment device
Indicator light simplifies functional check
With push button for triggering a function test
Proven technology of the Compact volume flow controllers
Suitable for constant and variable volume flow rates as well as q_vmin-, q_vmax switching

General information

Application

All-in-one control device for VAV terminal units
Dynamic differential pressure transducer, control electronics and actuator combined in a single casing
For clean air in ventilation and air conditioning systems
The standard filtration enables use in the supply air without additional dust protection measures
Application examples: Offices and classrooms
In the event of a strong occurrence of dust, install appropriate extract air filters upstream, as a partial volume flow is routed through the transducer for volume flow rate measurement.
If the air is heavily contaminated with dust, fluff, sticky, moist components, an attachment with a static differential pressure transducer must be used depending on the terminal unit type, e.g. XD0 or XS0
Application examples: Extract air from changing rooms and shower areas, hospital bedrooms
Various control options based on setpoint value default setting
Room temperature controllers, building automation and control systems, air quality controllers and others control the
variable volume flow control by specifying setpoint values via an analogue signal
Override control for activating qvmin, qvmax, shut-off or OPEN position can be set with a switch or relay
The volume flow rate actual value is available as a linear voltage signal

If air is contaminated with dust, lint, sticky, moist or slightly aggressive particles: do not use an Easy controller

Construction

LMV-D3AL-F TR for LVC
TR0VE-024T-10I-DD15 for TVE, TVE-Q
LMV-D3A-F TR for TVR
LMV-D3A TR for TZ-Silenzio, TA-Silenzio, TVZ, TVA
327V-024T-15-004 for TVJ, TVT up to and including 1000 × 500
SMV-D3A TR for TVT from 1000 x 600

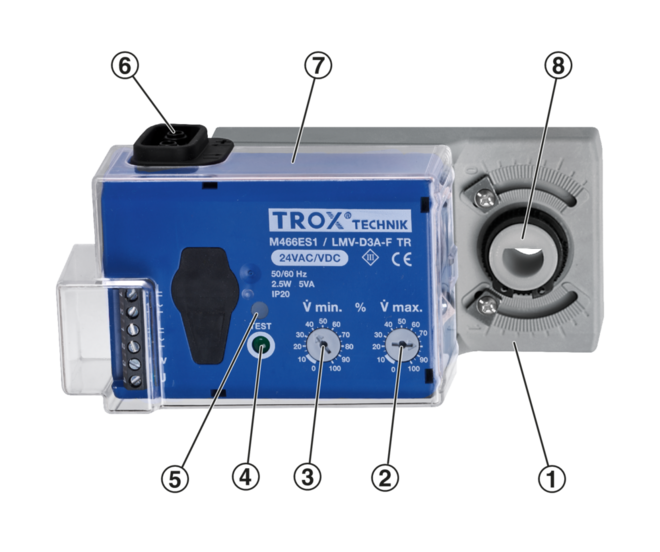

Parts and characteristics

Transducer based on dynamic measuring principle can only be used with clean air since a partial volume flow is passed through the transducer
Mechanical stops for limiting the damper blade positions (not for TVE and TVE-Q)
Actuators with overload protection
Transparent protective cap or terminal cover (depending on version)

Interface

Analogue signal 0 – 10 V DC

Control strategy

The volume flow controller works independent of the duct pressure
Differential pressure fluctuations do not result in permanent volume flow rate changes
To prevent the control from becoming unstable, a dead band is allowed within which the damper blade does not move
Volume flow parameters can be easily changed by the customer

Operating modes

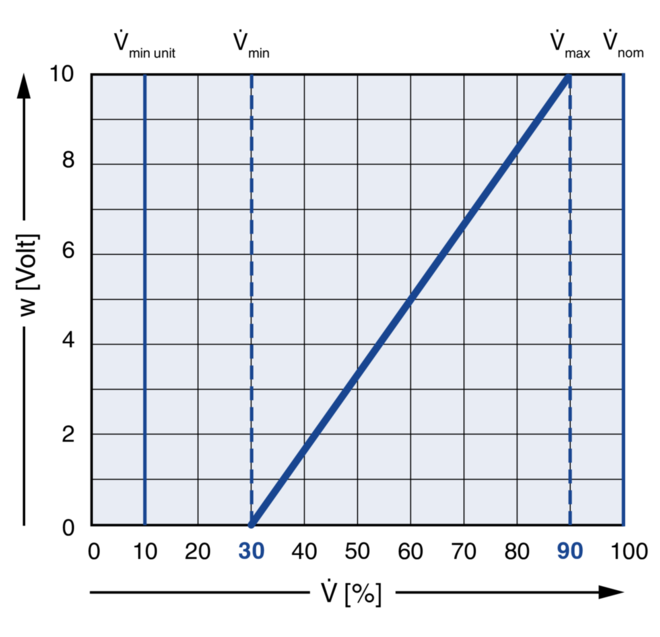

Operating mode variable volume flow rate, qvmin: minimum volume flow rate, qvmax: maximum volume flow rate
Operating mode Constant value, qvmin: Constant volume flow rate, qvmax: 100 %

Commissioning

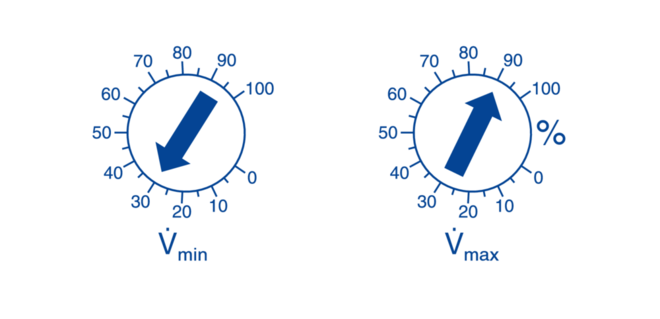

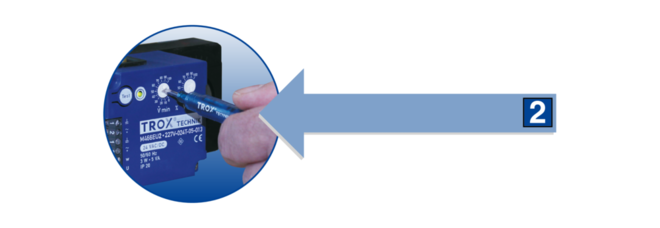

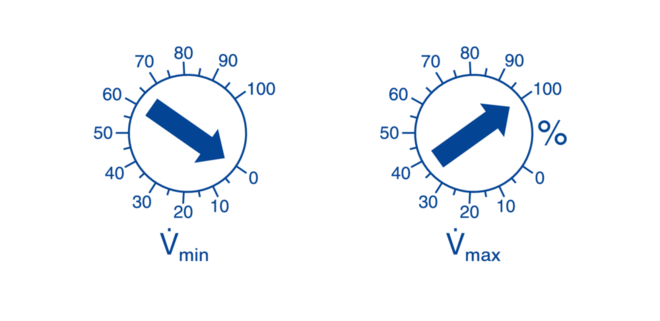

Operating values q_vmin, q_vmaxto be set on site with potentiometer on the outside of the housing without additional adjustment tools

Information technique

Function, Specification text , Order code

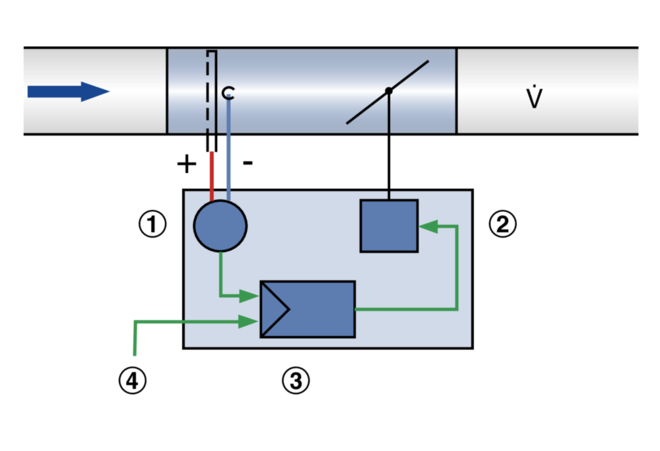

Principle of operation LVC, TVR, TZ-Silenzio, TA-Silenzio, TVZ, TVA, TVJ, TVT

1 Differential pressure transducer

2 Actuator

3 Volume flow controller

4 Setpoint value signal

Air terminal units control the volume flow in a closed loop, which means: measurement – comparison – adjustment.
The volume flow rate is obtained by measuring a differential pressure. This is done with a differential pressure sensor. The integrated differential pressure transducer converts the differential pressure into a voltage signal. The actual volume flow rate is available as a voltage signal. The factory setting is such that 10 V DC always corresponds to the nominal flow rate (q_vNom).
The volume flow setpoint is specified by a higher-level controller (e.g. room temperature controller, air quality controller, building management system) or by switching contacts. Variable volume flow control can be set between_vmin and q_vmax. It is possible to override the room temperature control by forced switching, e.g. for a shut-off
The controller compares the volume flow setpoint with the current actual value and adjusts the internal actuator according to the control deviation.
Volume flow parameter q_vmin and q_vmaxcan be set on potentiometers.

This specification text describes the general properties of the product.

Category

Easy controller for volume flow with potentiometer setting for qvmin, qvmax

Application

Control of a constant or variable volume flow rate setpoint
Electronic controller for applying a reference value and capturing an actual value signal
The actual value signal relates to the nominal volume flow rate so that commissioning and subsequent adjustment are simplified
Stand-alone operation or integration with a central BMS

Area of application

Dynamic transducer for clean air in ventilation and air conditioning systems

Actuator

Integral; slow running (run time 100–270 s for 90°)

Installation orientation

Either direction

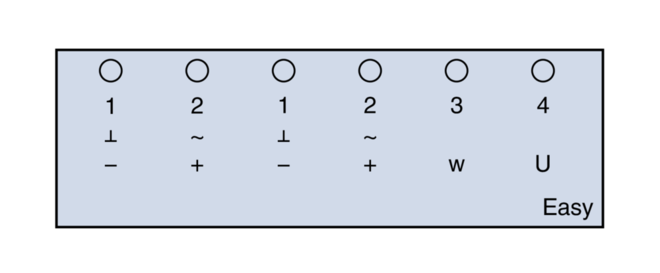

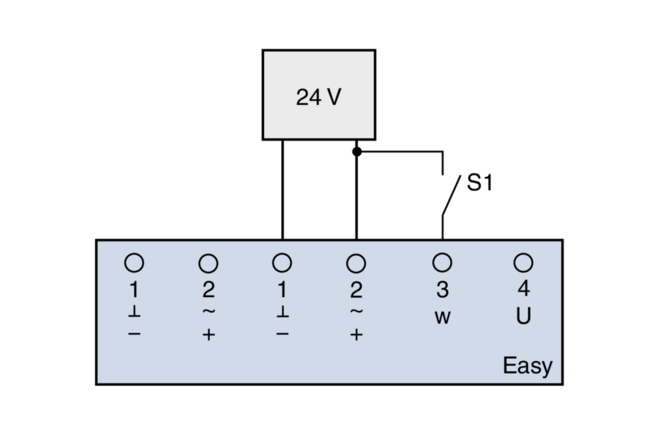

Connection

Double terminal for supply voltage to connect up to 3 controllers
No terminal box required.

Supply voltage

24 V AC/DC

Interface/signalling

Analogue signal 0 – 10 V DC

Interface information

Volume flow setpoint; actual volume flow rate
The actual value signal relates to the nominal volume flow rate so that commissioning and subsequent adjustment are simplified

Special functions

Clearly visible external indicator light for signalling the functions: Set, not set, and power failure
Activation of Vmin, Vmax, closed, open by external switch contacts/circuitry

Parameter setting

Specific parameters for VAV terminal unit are factory-set
Operating values qvmin, qvmax to be set on site with potentiometer on the outside of the housing without additional adjustment tools

Factory condition

Functional test under air using reference measurement on a regularly validated test bench in accordance with EN ISO 9001 to check the function and control accuracy of the complete volume flow controller
Adjustment of the device-specific parameters under air by reference measurement on a regularly validated test bench in accordance with EN ISO 9001
The test report of the factory parameterisation, functional test and adjustment must be made available after delivery of the volume flow controller

Equivalence criteria

Setting the volume flow rates without an adjustment device using Vmin and Vmax potentiometer
Electrical connections with screw terminals, no additional terminal boxes required
The test report of the factory parameterisation, functional test and adjustment under air by reference measurement on a regularly validated test bench in accordance with EN ISO 9001 is made available

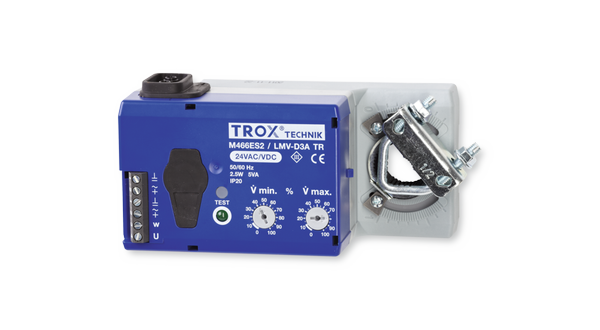

Control component Easy (shown together with TVR as an example)

TVR	–	D	/	200	/	D2	/	Easy
\|		\|		\|		\|		\|
1		2		5		6		7

1 Type
TVR VAV terminal unit

2 Acoustic cladding
No entry: none
D With acoustic cladding

5 Nominal size [mm]
100, 125, 160, 200, 250, 315, 400

6 Accessories
No entry: without accessories
D2 Lip seals on both ends
G2 Matching flanges for both ends

7 Attachments (control component)
Easy Volume flow controller, dynamic, analogue interface,

setting qvmin and qvmax on site with potentiometers

Order example: TVR-D/200/D2/Easy

Type	TVR
Acoustic cladding	With acoustic cladding
Nominal size [mm]	200
Accessories	Double lip seal both ends
Attachments (control component)	Volume flow controller, dynamic, analogue interface, setting qvmin and qvmax on site with potentiometers

Technical data

Easy controllers for VAV terminal units

Part number	Type	VAV terminal units
M466EU1	LMV-D3AL-F TR (type 2)	LVC
A00000082301	TR0VE-024T-10l-DD15 (type 1)	TVE, TVE-Q
M466ES1	LMV-D3A-F TR (type 2)	TVR
M466ES2	LMV-D3A TR (type 2)	TZ-Silenzio, TA-Silenzio, TVZ, TVA
A00000087445	327V-024T-15-004 (type 3)	TVJ (all dimensions) TVT (up to and including 1000 × 500)
M466ES3	SMV-D3A TR (type 2)	TVT from 1000 × 600

Easy controller LMV-D3AL-F TR for VAV terminal unit LVC

Type of measurement/installation orientation	Dynamic measurements, any installation orientation
Supply voltage (AC)	24 V AC ± 20%, 50/60 Hz
Supply voltage (DC)	24 V DC -10/+20 %
Power rating (AC)	3.5 VA max.
Power rating (DC)	2 W max.
Run time for 90°	120 – 150 s
Setpoint value signal input	0 – 10 V DC, Ra > 100 kΩ
Actual value signal output	0 – 10 V DC, 0.5 mA max.
IEC protection class	III (protective extra-low voltage)
Protection level	IP 20
EC conformity	EMC to 2014/30/EU, low voltage to 2014/35/EU

Easy controller TR0VE-024T-10l-DD15 for VAV terminal unit TVE and TVE-Q

Type of measurement/installation orientation	Dynamic measurements, any installation orientation
Supply voltage (AC)	24 V AC ± 20%, 50/60 Hz
Supply voltage (DC)	24 V DC ± 20 %
Connected load	Rating TVE DN 100 - 160: 4 VA TVE DN 200 - 400: 6 VA TVE-Q up to height 200: 4 W TVE-Q up to height 300: 6 W Power consumption (during operation) TVE DN 100 - 160: 2.5 W TVE DN 200 - 400: 3.5 W TVE-Q up to height 200: 2.5 W TVE-Q up to height 300: 3.5 W Power consumption (during idle state) 1 W
Run time for 90°	100 s
Setpoint value signal input	0 – 10 V DC, Ra > 100 kΩ
Actual value signal output	0 – 10 V DC, 5 mA max.
IEC protection class	III (protective extra-low voltage)
Protection level	IP 42 (with the terminal cover attached)
EC conformity	EMC to 2014/30/EU

Easy controller

For VAV control units TVR, TZ-Silenzio, TA-Silenzio, TVZ, TVA

Type of measurement/installation orientation	Dynamic measurements, any installation orientation
Supply voltage (AC)	24 V AC ± 20 %, 50/60 Hz
Supply voltage (DC)	24 V DC -10/+20 %
Power rating (AC)	5 VA max.
Power rating (DC)	2.5 W max.
Run time for 90°	110 – 150 s
Setpoint value signal input	0 – 10 V DC, Ra > 100 kΩ
Actual value signal output	0 – 10 V DC, 0.5 mA max.
IEC protection class	III (protective extra-low voltage)
Protection level	IP 20
EC conformity	EMC to 2014/30/EU

Easy controller 327V-024T-15-004 for VAV terminal units TVJ (all dimensions), TVT (up to 1000 x 500)

Type of measurement/installation orientation	Dynamic measurements, any installation orientation
Supply voltage (AC)	24 V AC ± 20%, 50/60 Hz
Supply voltage (DC)	24 V DC ± 20 %
Power rating (AC)	4 VA max.
Power rating (DC)	2 W max.
Run time for 90°	150 s
Signal input setpoint value	0 – 10 V DC, Ra > 100 kΩ
Signal output actual value	0 – 10 V DC, max. 5 mA
IEC protection class	III (Protective extra-low voltage)
Protection level	IP 42 (with the terminal cover attached)
EC conformity	EMC to 2014/30/EU

Easy controller SMV-D3A TR for VAV terminal unit TVT from NW 1000 x 600

Type of measurement/installation orientation	Dynamic measurements, any installation orientation
Supply voltage (AC)	24 V AC ± 20 %, 50/60 Hz
Supply voltage (DC)	24 V DC -10/+20 %
Power rating (AC)	6 VA max.
Power rating (DC)	3 W max.
Run time for 90°	110 – 150 s
Setpoint value signal input	0 – 10 V DC, Ra > 100 kΩ
Actual value signal output	0 – 10 V DC, max. 0,5 mA
IEC protection class	III (protective extra-low voltage)
Protection level	IP 20
EC conformity	EMC to 2014/30/EU

Cut-out LED button

1 LED push button

Description of status LEDs and error messages regarding control components for terminal unit TVE, TVE-Q

Triggering a test function for Easy attachment group

Pressing the LED push button for > 2 s starts a test run.

The control damper is moved from the current position to the open and closed position. The volume flow controller then returns to control mode.

Explanation status and error messages via LED flashing signal for attachments with article number M466ES1, M466ES2, M466ES3, M466EU1

LED	Operating status
OFF ▪ ▪	No power Easy controller defect
ON	Flow rate setpoint value has been reached
▪ ▪ Blinking slowly (0.5 Hz) ▪ ▪	Actual value ≠ setpoint value Controller is trying to achieve the setpoint or Test in progress Synchronisation in progress
Blinking rapidly (2.5 Hz)	Direction of rotation has been changed
